High Quality Synchronous Reluctance Permanent Magnetic 8KW 24000RPM Industrial Motor
Product Feature
1. Water Cooling Method
2. High Power Density; High Torque Density
3. High Speed---24000RPM
According to the actual needs and the operation characteristics of the motor loads, a comprohensive improvement has been carried on the structure and the bearings to reach the largest rated speed of 100000rpm,which is much higher than the of the conventional motors,and proiders the system with durable and reliable power.
4. Light Weight; Low Noise
5. Permanent Magnetic Synchronous Reluctance Motor
ABOVE MODELS ARE ONLY TYPICAL MODELS
WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,
AND MOTOR ADDERS FOR ENCODER, GEARBOX, BRAKE...ETC
Specifications
| Model Type | SRPM205M8O8 |
| Voltage | 380V AC |
| Rated Power | 8KW |
| Rated Torque | 3.2N.m |
| Rated Speed | 24000rpm |
| Isolation | H/F |
| IP Level | IP67 |
| Cooling Method | Oil Cooling |
| Pole | 4 |
| Weight | 70KG |
Main Materials
MC Motor adopts top level materials for our products:
1. High grade NdFeb permanent magnet
2. Famous brand ceramic bearings
3. Customized professional frequency conversion cable
4. Low-power customization silicon steel
5. Efficient and reliable oil cooler
Application
Hydrogen Oxygen air compressors ; Hydrogen circulating system
Packing
1. Wooden/paper carton optional (price will be differenert)
2. Most of our motors are customized, please confirm the carton size with our sales when all your requirement are confirmed.
Shipping direction
1. Sample order: our stock cargons L/T 1~3 days, customized 45~60 days
2. Mass production order: 15~25 days based on the quantity
3. By air: we normally take DHL/FEDEX/UPS/TNT or other door to door service
4. By sea: LCL/FCL are both ok.
FAQ
1. Can you make the motor with customized requirement ?
YES. We have experienced R&D capability and great engineers, Their experience and innovation capability can support customized project.
2. Do you have the item in stock?
Sorry we don't have the item in stock, , Motor have hundreds of different requirement such as voltage, speed, torque, shaft dimension and so on, So it's hard to prepared samples
3. What is your MOQ?
Sample order for quality testing is also welcomed, but larger quantity will get more better Condition.
4. How long is your delivery time?
For our standard motor, the delivery time is around 1.5~2 months.For the customized motor, the delivery time is around 3~4 months.It depends on clients project and quantity.
5. What kind of motors you can provide?
MC Motor is focus on the permanent magnetic synchronous motor, which need to work with the controller/inverter.
|
|

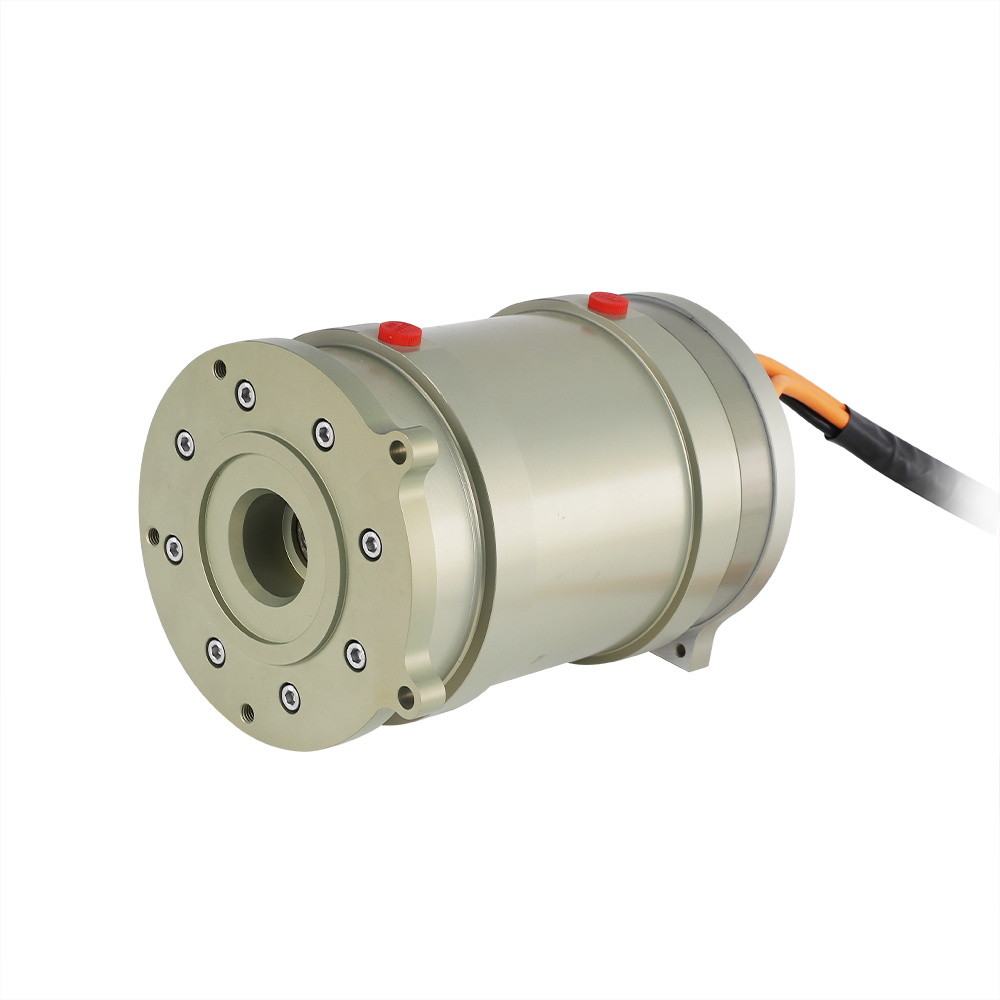

High Quality Synchronous Reluctance Permanent Magnetic 8KW 24000RPM Industrial Motor Images
|
